KD-A22

底鼓转换套件

KD-A22

将您的 22 英寸传统底鼓转换为 V-Drums 音源的触发器

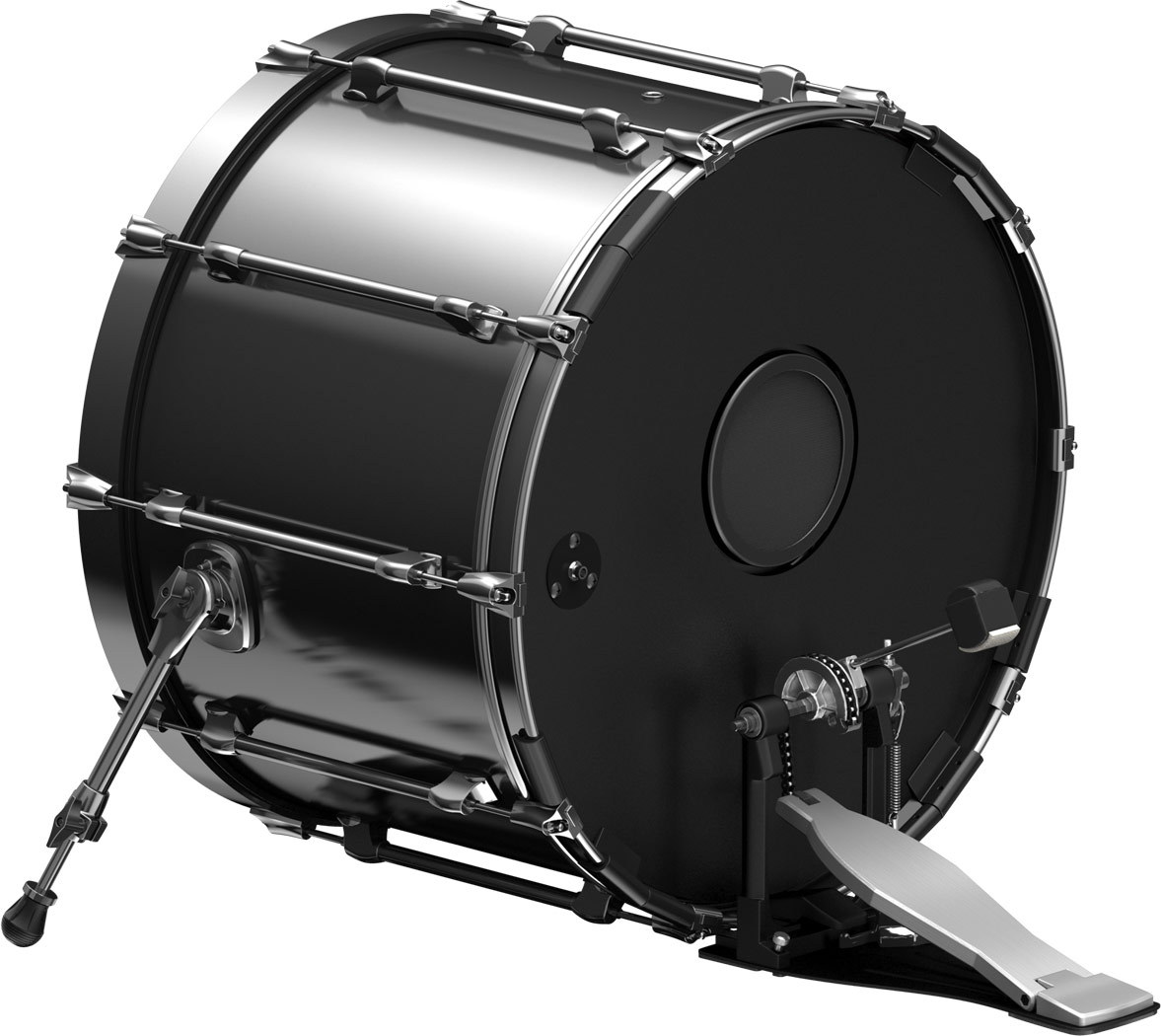

如果您喜欢传统底鼓的外观和质感,Roland KD-A22 底鼓转换套件可将其并入到 V-Drums 设备布局中。这款新的触发器套装适用于标准的 22 英寸传统底鼓,加上 Roland 创新的空气阻尼结构搭配深厚的鼓壳,为您带来令人惊艳的舞台气势和原声风格。该套装包括转换 22 英寸传统底鼓*所需的全部零件(前鼓皮、带底板传感器设备的打击面皮、22 英寸金属鼓框与减震垫)。KD-A22 为您的设备布局提供稳定、一致且准确的触发,并且与两个底鼓踏板完全兼容。

*KD-A22 套装中不含 22 英寸的传统底鼓和踩锤。

Specifications
Compatible size of acoustic bass drum
22 inches
Required dimensions of bass drum
Height: under 590 mm, under 23-1/4 inches (*1)
Width : under 620 mm, under 24-7/16 inches (*1)
Distance of between Lug and Lug for attach Kick Pedal : over 130 mm, over 5-1/8 inches

*1 Using MDS-50K/MDS-50KV (drum stand), including the attached Kick Pedal and other component.
Contents
Front head (black, with Roland/V-Drums logo)
Batter head (clear, with kick pad)
Batter board (black, with trigger jack)
Batter hoop (black, metal-made, with kick pedal holder)
Batter board cushion x 2 (black)
Trigger
1
Connector
1/4-inch phone type
Accessories
Owner's manual
Connection cable
Drum key

* 22-inch acoustic bass drum is not included
Weight (excluding acoustic bass drum)
Weight
3.9 kg
8 lbs. 10 oz.
KD-A22 Quick Start

KD-A22 Quick Start Step-by-step instructions

This Quick Start Video contains step-by-step instructions that will quickly introduce you to its major features. 了解更多
